Butterfly Valve metallic seated DKD

Metallically sealing Valves are produced in addition to the soft sealing Valves (elastomer lined). These show a nominal width up to 2% of leakage (surface equivalent) according to their construction. These Valves are used preferentially for high temperatures. Special equipment is available for temperatures up to 1100°C. Often the Valves are used as well as a silo lock for bulk material, particularly if it is necessary to avoid a contamination of the product with the elastic wear of the seal.

  • depending on the construction applicable for temperatures till 1100 °C
  • sweeping or slinging Valves have a leakage from 0.5 to 2 %
  • Double-eccentric Valves available with a density according to DIN 12266 leakage rate B
  • a generally higher lifetime than soft sealing Valves
  • within a higher nominal size considerably cheaper as soft sealing Valves
  • in centric execution low torque (depending on the product)
  • also available in EX version for the application in zone 0 / 20, according to type test BVS03AtexH026X
  • Shafts and armature head qualified for the construction of the different drive possibilities, cutting sites
    after DIN / ISO 5211
Body
Silumin, steel, stainless steel, HII, special materials
Valve disc
Steel, stainless steel, HII, special materials
Shafts
stainless steel, special materials
Shaft seal
O-rings, stuffing box
  1. Body
  2. Valve Disc
  3. Shrivelled sealing ring
  4. Shaft
  5. Retaining ring
  6. O-Rings
  7. Connection flange
  8. Bearing pin
  9. Seal
  10. O-Ring
  11. Plug screw
  12. End plate

DKD 103

Butterfly Valve, metallic seated, full flange design – for use
in the control range up to 280°C.

  • Range of Nominal Widths: DN 50 – DN 1200
  • Operating Temperature: – 40°C to + 280°C*
  • Sealing ring Steel / Special Steel
  • Leakage: from about 0,5 % to 2 % – surface equivalent

DKD 110

Absperrklappe, Butterfly Valve, metallic seated, wafer design – shut off and
control valve up to 280°C.

  • Range of Nominal Widths: DN 50 – DN 1200
  • Operating Temperature: – 40°C to + 280°C*
  • Sealing ring Steel / Special Steel
  • Leakage: from about 0,5 % to 2 % – surface equivalent

DKD/DKH

Butterfly Valve, metallic seated, wafer design – shut off and
control valve for the high temperature range.

  • Range of Nominal Widths: DN 50 – DN 1200
  • Operating Temperature: – 40°C to + 280°C*
  • Sealing ring Steel / Special Steel
  • Leakage: from about 0,5 % to 2 % – surface equivalent

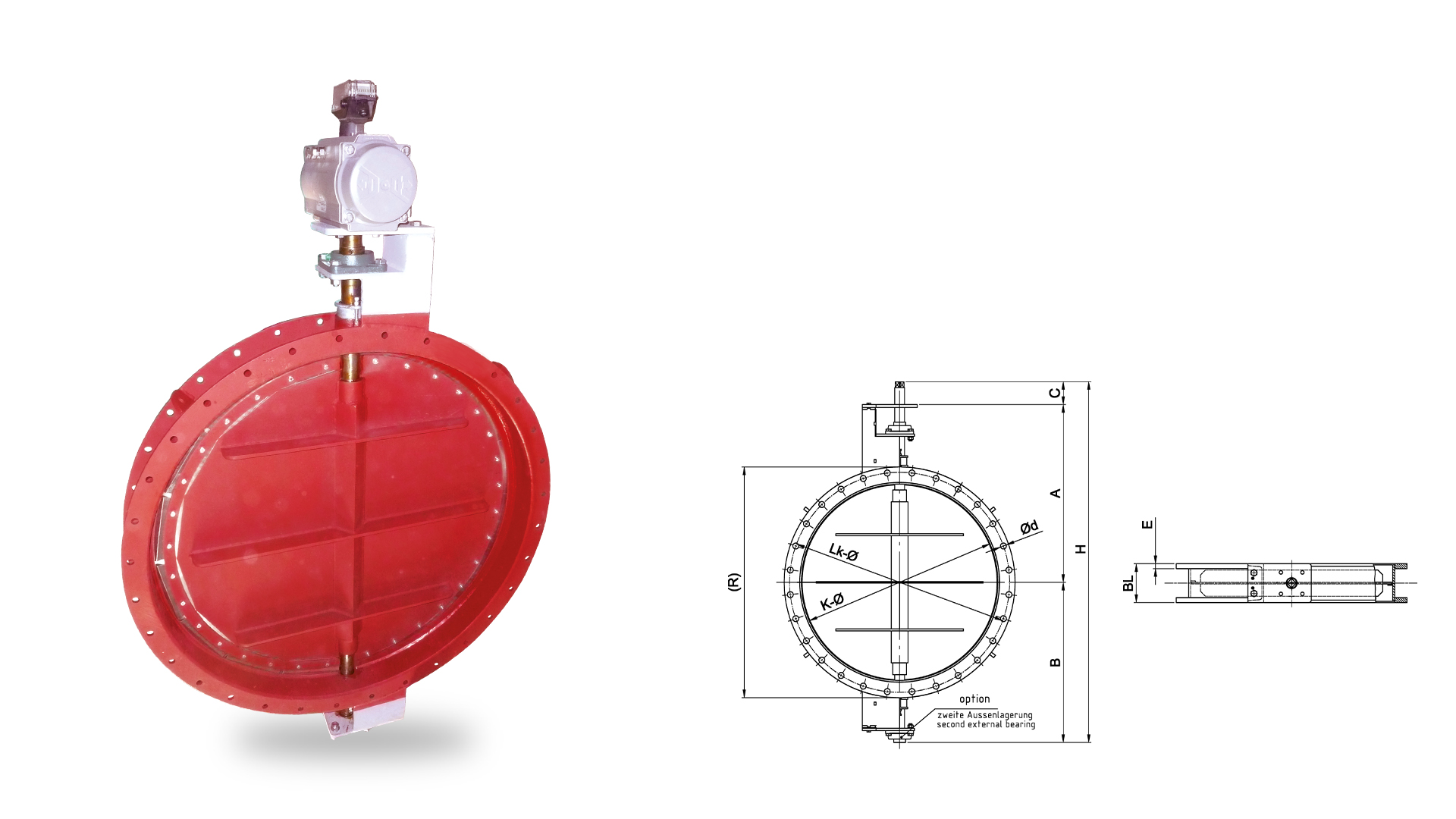

DKD-AK

Butterfly Valve, metallic seated, wafer design – shut off and
control valve for the high temperature range.

  • Range of Nominal Widths: DN 50 – DN 1200
  • Operating Temperature: – 40°C to + 280°C*
  • Sealing ring Steel / Special Steel
  • Leakage: from about 0,5 % to 2 % – surface equivalent

DKD-KL

Butterfly Valve, metallic seated, Clamp ring connection – shut off and
control valve for air or bulk goods.

  • Range of Nominal Widths: DN 50 – DN 1200
  • Operating Temperature: – 40°C to + 280°C*
  • Sealing ring Steel / Special Steel
  • Leakage: from about 0,5 % to 2 % – surface equivalent

* Operational limitations depend on nominal width, temperature and composite materials. Crucial are the parameters set in the confirmation.
